NEW!!! Zorx 1U CV Bus Expander MK II 1U/3U

***NOTE: All Zorx 1U products follow the Intellijel 1U size format of 39.65mm high.

***NOTE: This module comes with an extra 3U faceplate so it can be mounted in a 1U row or a 3U row. 3U faceplate is 6HP and is black with silver.

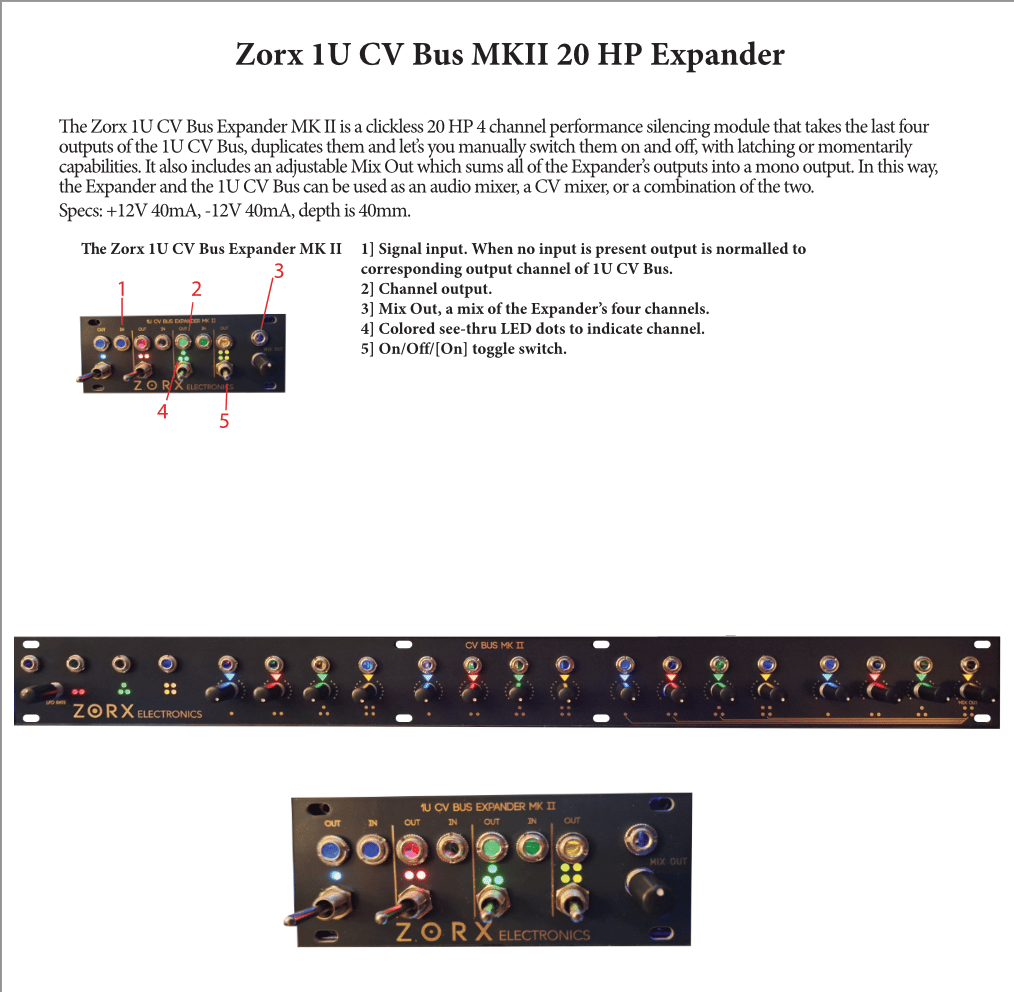

The Zorx 1U CV Bus Expander MK II is a clickless 20 HP 4 channel performance silencing module that takes the last four outputs of the Zorx 1U CV Bus, duplicates them and let’s you manually switch them on and off, with latching or momentarily capabilities. It also includes an adjustable Mix Out which sums all of the Expander’s outputs into a mono output. In this way, the Expander and the 1U CV Bus can be used as an audio mixer, a CV mixer, or a combination of the two.

Specs: +12V 40mA, -12V 40mA, depth is 40mm.

1U Faceplate is black matte with copper.
